receipt-ocr

Architecture

Directory Structure

receipt-ocr/
├── app/
│   ├── __init__.py
│   ├── main.py              # FastAPI app (sync + async endpoints)
│   └── worker.py            # Celery worker for async extraction
├── data/
│   ├── storage.py           # StorageBackend interface (local / S3)
│   └── dataset.py           # CordDataset + WebDataset loaders
├── train/
│   ├── finetune_donut.py    # LoRA finetuning script
│   └── checkpoints/
│       └── donut-receipt-lora/
├── eval/
│   ├── run_eval.py          # SyncEvalRunner / AsyncEvalRunner
│   └── metrics.py           # field-level precision / recall / F1
├── scripts/
│   └── create_shards.py     # WebDataset tar shard creation + S3 sync
├── demo/
│   └── index.html           # this file — interactive project docs
├── tests/
│   └── test_api.py          # FastAPI TestClient tests (mocked model)
├── config.yaml
├── schema.json              # GroceryReceipt JSON Schema
├── pyproject.toml
├── Dockerfile
└── docker-compose.yml

Local Apps

Three FastAPI single-file apps drive the loop: the annotator captures ground truth from phone photos, the comparator A/B's every wired OCR / VLM pipeline on the same image, and the batch runner processes a folder of receipts end-to-end through a chosen pipeline and persists results to JSONL + SQLite for downstream tools.

click to enlarge

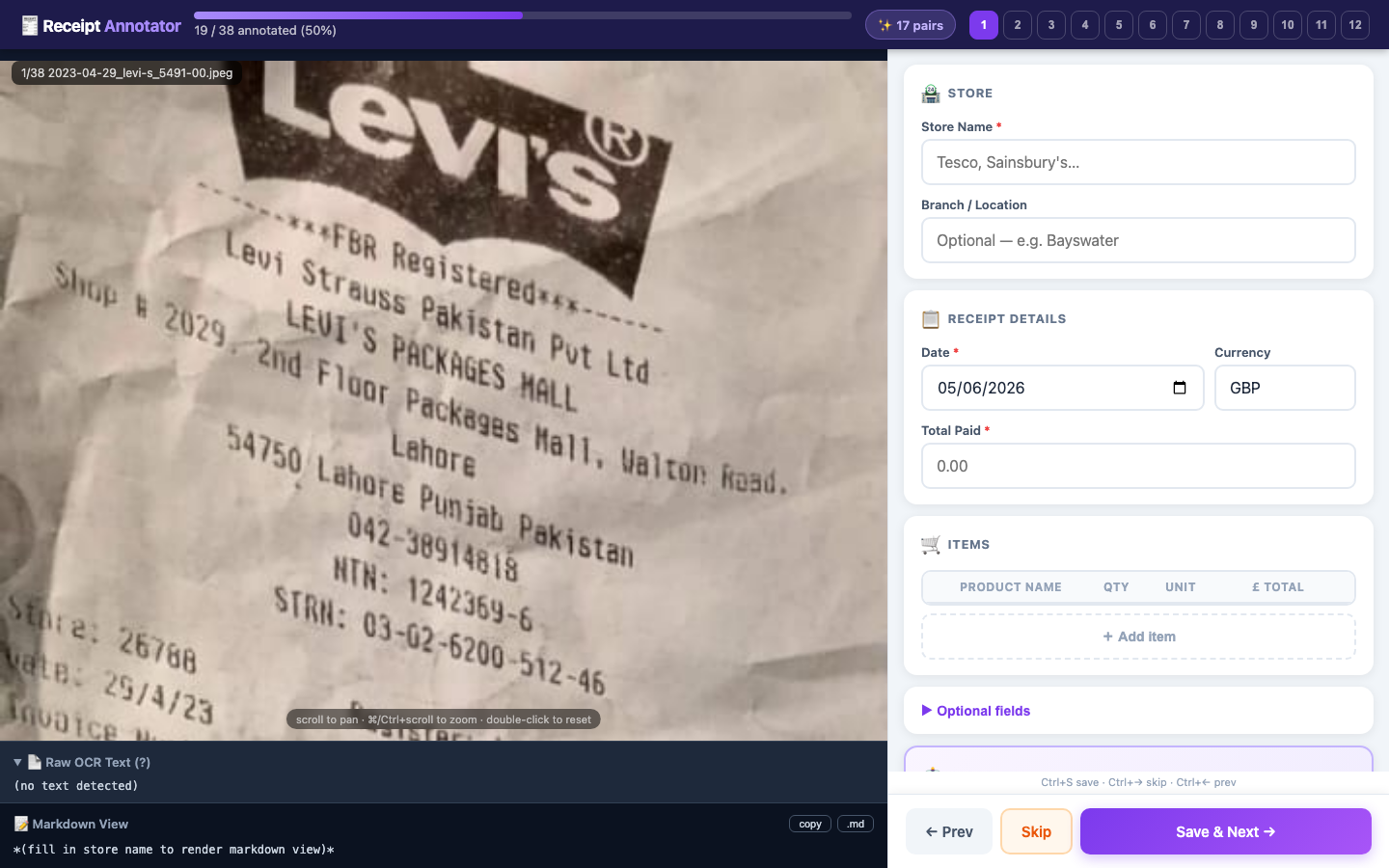

Annotator

annotator/app.py · localhost:7860

capture GT

Drop a receipt photo in, pick a model to auto-suggest, hand-correct the JSON, hit save. Result lands in annotations.jsonl. Tracks which fields you corrected vs accepted — useful signal later.

• Auto-suggest via Claude (haiku/sonnet), OCR→LLM pipelines, or Ollama qwen3:8b
• Inline JSON editor with schema validation and rapidfuzz-based field-diff highlights
• Tracks _fields_corrected per record for active-learning later

uv run uvicorn annotator.app:app --port 7860

click to enlarge

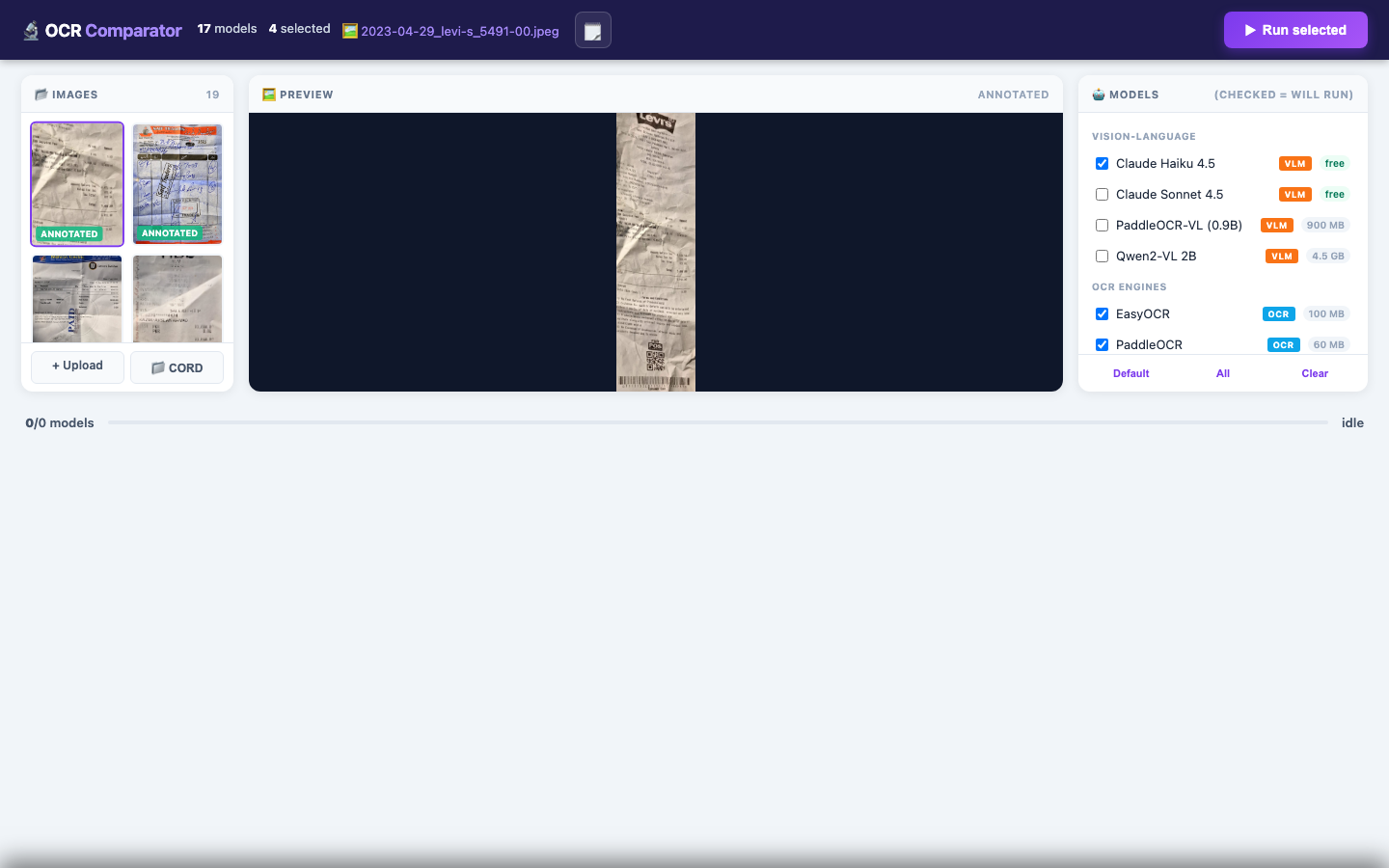

Comparator

comparator/app.py · localhost:7861

A/B models

Pick any subset of the 15 wired models, drop in an image, stream results as each runner finishes (SSE). Each card has four toggle-views — Receipt JSON, Markdown (clean & raw), HTML, and the layout-detection JSON when the model emits one — rendered in sandboxed iframes.

• 15 model_ids covering raw OCR, OCR→LLM, VLM image→JSON, layout pipelines, finetuned Donut/LayoutLMv3
• Markdown-output models (PaddleOCR-VL, Nanonets, PP-StructureV3) auto-augmented with Haiku to also yield a Receipt JSON view
• Per-model latency, error capture, and a slide-out log drawer tailing /tmp/comparator.log
• Backed by the same _run_one_model() the benchmark harness uses

uv run uvicorn comparator.app:app --port 7861

click to enlarge

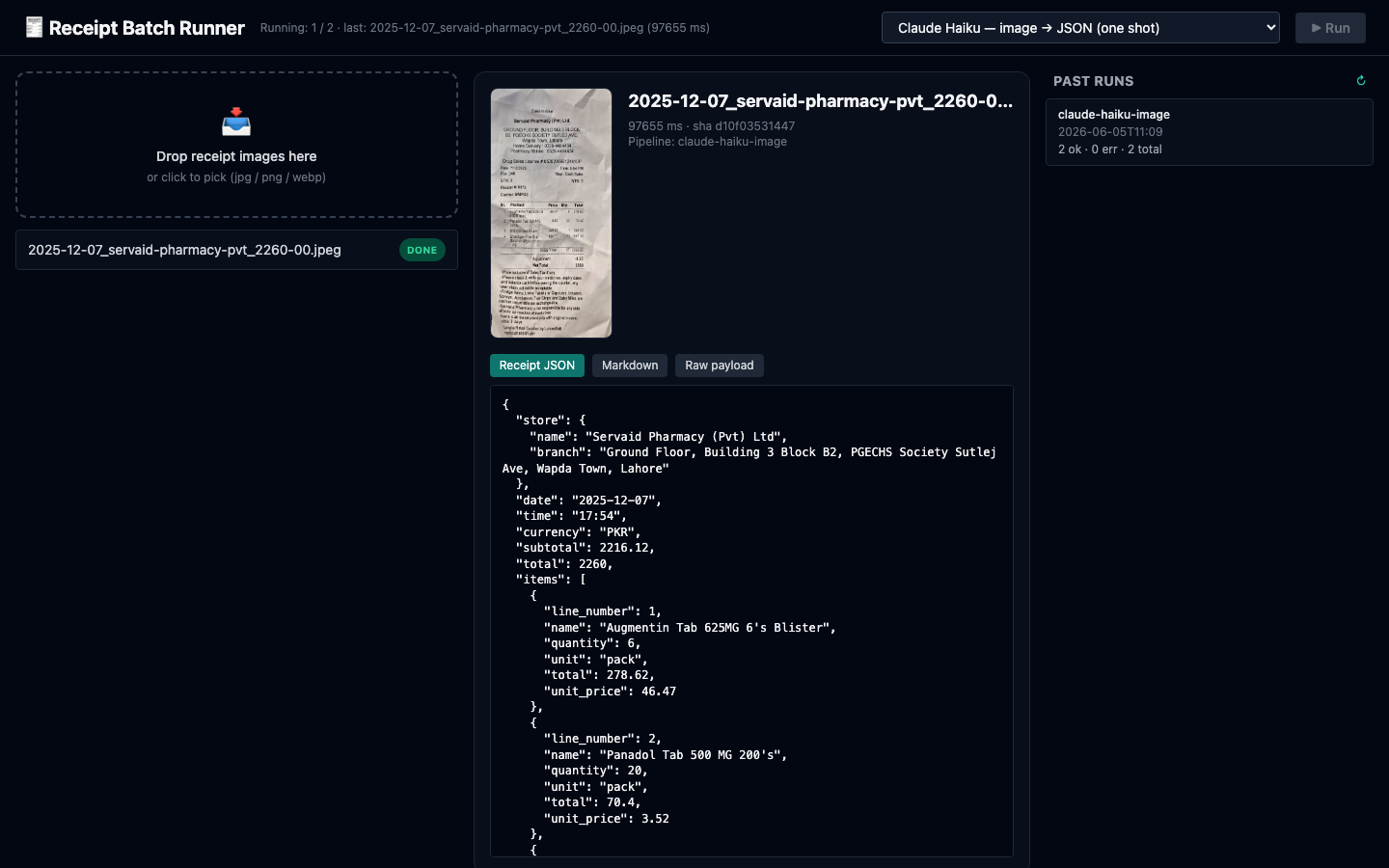

Batch Runner

batch_runner/app.py · localhost:7862 · also a CLI: python -m pipeline …

production pipeline

Drop a folder of phone receipts, pick a pipeline (PaddleOCR-VL v1.6 → Haiku, Claude Haiku image→JSON, EasyOCR → Ollama, …), watch each one finish as Receipt JSON, then query everything from SQLite. Designed as a paperless-ngx external tool and as the backing data source for a separate expense tracker — both consume the same data/batch_runs/*/results.jsonl + data/receipts.db contract.

• PaddleOCR-VL v1.6 wired as the headline pipeline (markdown + Haiku-augmented JSON)
• 7 pipelines today; composable stage chains queued as a follow-up
• Per-image SSE streaming, queue with status badges, click any row to see Receipt JSON / Markdown / raw payload
• Every batch lands on disk: manifest.json, results.jsonl, errors.jsonl, summary.csv, plus symlinks to the original images
• SQLite is a derived index — delete receipts.db and python -m pipeline reindex rebuilds it

uv run python batch_runner/app.py --port 7862 uv run python -m pipeline run --pipeline paddleocr-vl --input ./receipts/ --output data/batch_runs/ # paperless-ngx external-tool signature: single image → JSON on stdout uv run python -m pipeline run --pipeline paddleocr-vl --input ./one.jpg --output -

These close the loop: capture GT in the annotator → compare candidate models in the comparator → run the chosen pipeline in batch through the runner / CLI → SQLite + JSONL persistence ready for downstream tools.

Held-out evaluation of 11 OCR / VLM pipelines on a personal dataset of 19 grocery-and-pharmacy receipts captured in Lahore, PK (PKR currency). The annotator captures ground truth — store, date, line items with qty & total, currency, and overall total — and the benchmark scores each model against it via fuzzy field matching (rapidfuzz ≥80) and bipartite item matching (name ≥70 + total ±2%).

Raw-OCR rows score 0 by design — they emit text not structured JSON, so the field-level scorer has nothing to match. Their value comes when piped into an LLM (rows 2-5 above). claude-sonnet, nanonets-ocr-s, and qwen2vl-2b are omitted: incomplete runs (2/19) or dependency / latency blockers.

Reproduce: uv run python eval/benchmark.py --quick. Raw data: eval/results/benchmark-2026-06-04/.

Try it Locally

This is a local demo — the FastAPI server must be running on your machine. The form below calls localhost:8000.

git clone https://github.com/arslankazmi/receipt-ocr
cd receipt-ocr
pip install -e .
uvicorn app.main:app   # starts on localhost:8000
# then open demo/index.html in your browser

Upload a receipt image. Requires the local server running at localhost:8000.

Preview

Receipt image Choose receipt image…

Extract Receipt

Extracted JSON

Required fields

Local vs. Scale
